Airtraq® Guided Video Intubation
Airtraq® is the only video laryngoscope that can be reasonably and economically placed in every location where an intubation is performed. It is highly effective for difficult and challenging airways, also awake, cervical immobilisation, bariatric and face-to-face intubations. Readily available throughout Theatres, Emergency Care and ICU, on resuscitation trolleys and for pre-hospital use, Airtraq® is single use to prevent cross contamination, easy to learn and simple to use.

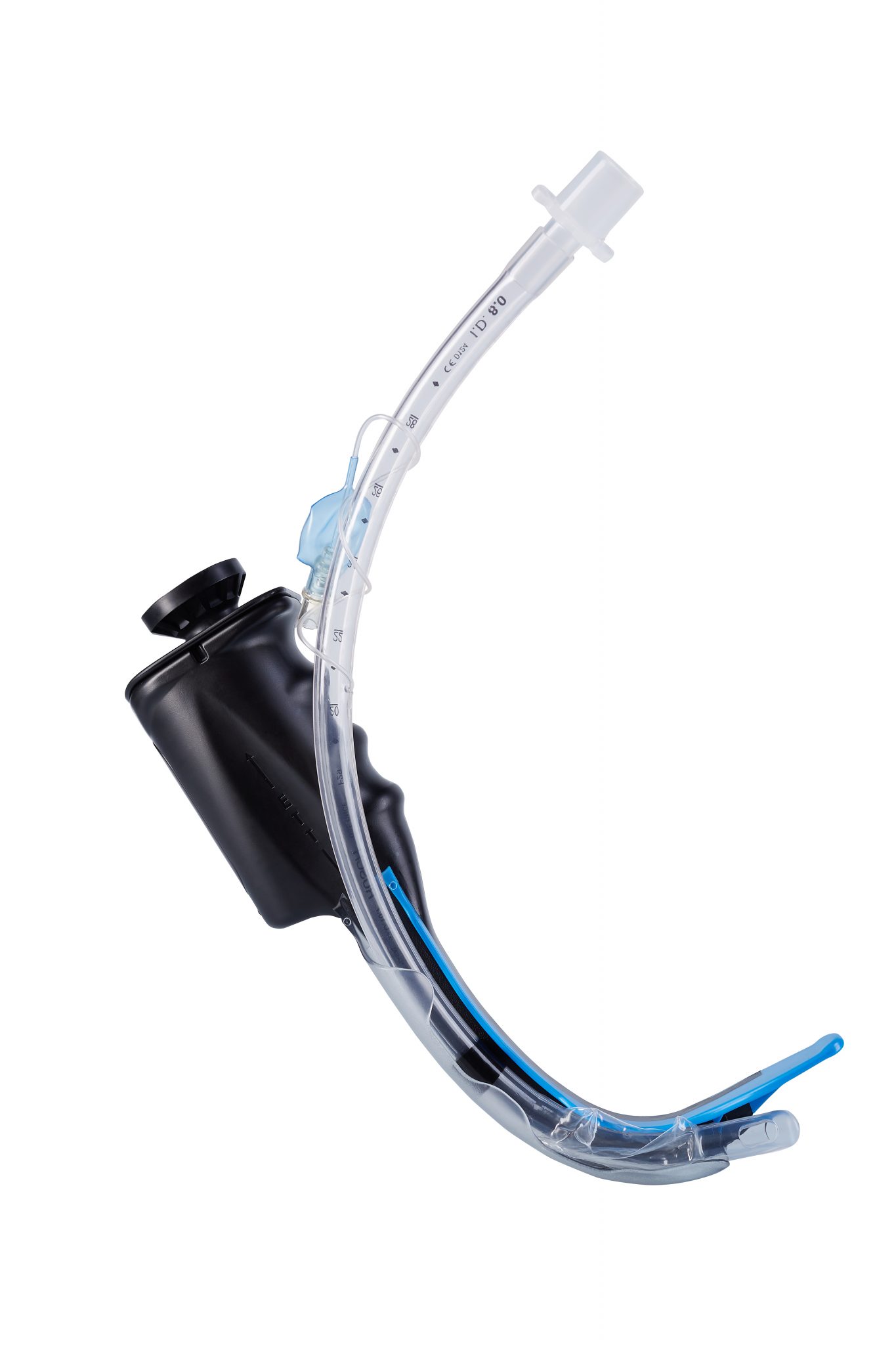

For difficult intubation Airtraq® SP (single patient) available in six sizes
- Regular Adult (ETTs 7.0-8.5), Small Adult (ETTs 6.0-7.5), Paediatric (ETTs 4.0-5.5), Infant (ETTs 2.5-3.5), Nasal and Double Lumen (35-41 Fr).
- Improved Optical System
- Reduced dimensions (mouth opening A-021 15 mm and A-011 16 mm)
- Improvements to Guide Channel: delivery angle and surface
- Improved Eyecup
- Reduced warm-up time
- Improved on/off switch
- Now only 2 batteries

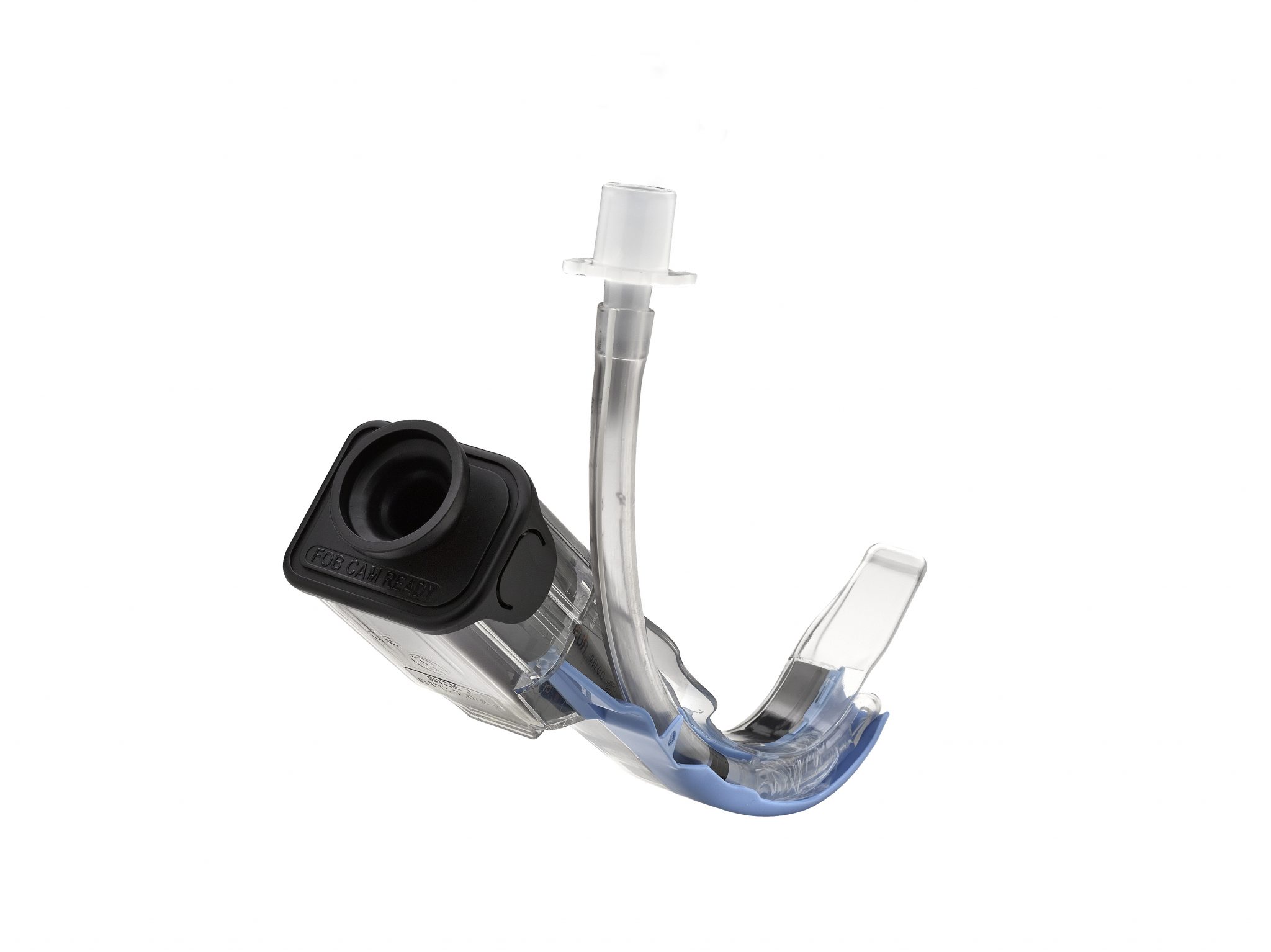

For routine intubation – Airtraq® Avant Optical Laryngoscopes
- Airtraq® Avant for challenging and elective airways, as well as for difficult airways
- Airtraq® Optics inserts inside the single use Airtraq® Blade and is completely isolated from the patient, unlike many other videolaryngoscopy devices
- Airtraq® Optics and Docking Stations provided free of charge

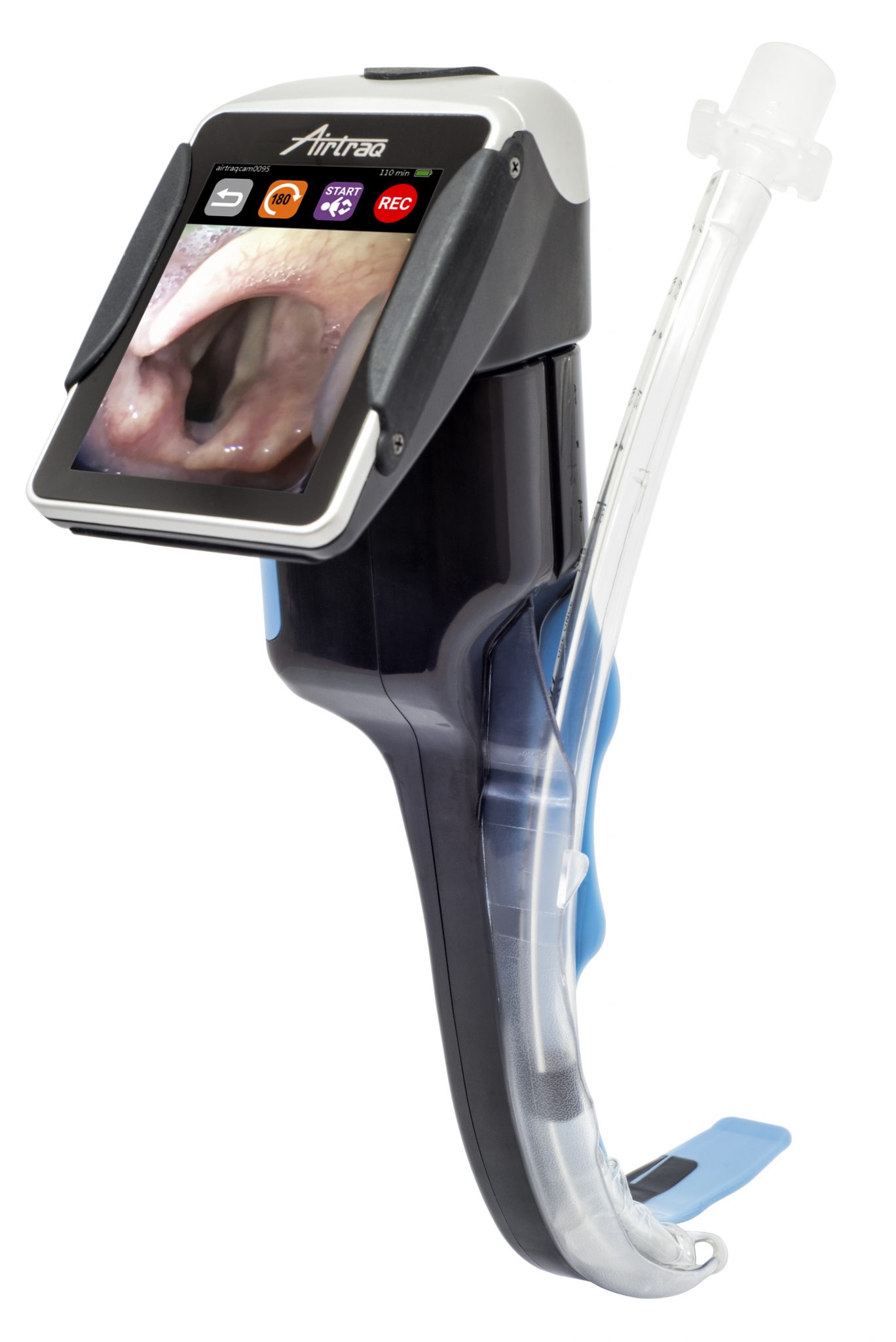

Airtraq® Digital Camera (A-390)
- Minimal cost
- Light and Impact Resistant
- Integrated 2.8” touch panel
- Auto-Recording option
- Video Playback on screen and downloadable videos to PC
- Wi-Fi connection to PC’s and phones/tablets
- Operating time 240 minutes
Litreature:
Airtraq Guided Video Intubation Brochure
Technical Details
SP
AVANT
ACCESSORIES
Product code | Description | ETT size | Mouth opening | Units per box | NHSSC code |
A-011 | Airtraq SP Regular (size 3) | 7.0 - 8.5 | 16mm | 6 | FDS2530 |
A-021 | Airtraq SP Small (size 2) | 6.0 - 7.5 | 15mm | 6 | FDD2531 |
A-031 | Airtraq SP Paediatric (size 1) | 4.0 - 5.5 | 11.5mm | 6 | FDD2532 |
A-041 | Airtraq SP Infant (size 0) | 2.5 - 3.5 | 11mm | 6 | FDD2533 |
A-061 | Airtraq SP Adult Nasal | - | 15mm | 6 | FDD2535 |
A-071 | Airtraq SP Double Lumen | 35 - 41 Fr | 19mm | 6 | FDD2536 |
Product code | Description | ETT size | Mouth opening | Units per box | NHSSC code |
A-501 | Airtraq Avant Optics | - | - | 1 | FSM6157 |
A-511 | Airtraq Avant Regular Blade (size 3) | 7.0 - 8.5 | 17mm | 50 | FSM6158 |
A-521 | Airtraq Avant Small Blade (size 2) | 6.0 - 7.5 | 17mm | 50 | FSM6159 |
A-590 | Airtraq Avant Docking Station | - | - | 1 | FSM6160 |
Product code | Description | ETT size | Mouth opening | Units per box | NHSSC code |
A-307 | Airtraq Phone Adapter | - | - | 1 | FSM6155 |
A-309 | Airtraq Phone Protection Sleeve | - | - | 100 | FSM3654 |
A-390 | Airtraq Wi-Fi Camera | - | - | 1 | FSM3778 |
A-390-KIT | Airtraq Wi-Fi Camera Kit | - | - | 1 | FSM3779 |
