RotaCut
- different tip shapes and ring markings
- single and multi-lumen variants (1, 2, 3), rotatable
- guide wire and short wire compatibility
- special sphincterotomes: Billroth-II type
- variants with side cutting wire for a precise cutting process.
- types with semi-insulated cutting wire for safe and controlled papillary incision
Rotacut Sphincterotomes – Single Use Leaflet
Technical Details

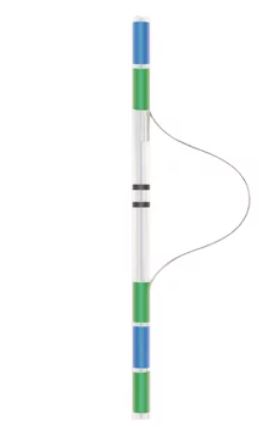

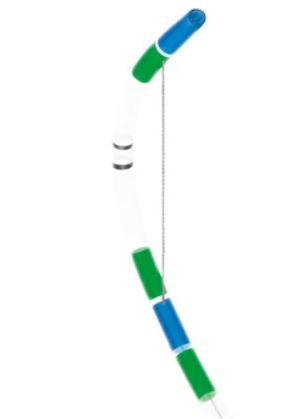

RotaCut® – Sphincterotome with Braided Cutting Wire
Length 200 cm; colored ring markers
| Catalogue-No. | Description | Tip Length (mm) | Cutting Wire Length (mm) | Outer Sheath Diameter (mm) | Min. Accessory Channel (mm) |
| GSP-01-17-020 | Standard Tip | 5 | 20 | 1.7 | 2.0 |
RotaCut® – with Braided Cutting Wire
Length 200 cm; compatible with guide wire .035” (0.89 mm); colored ring markers
| Catalogue-No. | Description | Tip Length (mm) | Cutting Wire Length (mm) | Outer Sheath Diameter (mm) | Min. Accessory Channel (mm) |
| GSP-21-17-020 | Tapered Tip | 5 | 20 | 1.7 | 2.0 |
| GSP-21-17-030 | Tapered Tip | 5 | 30 | 1.7 | 2.0 |
| GSP-21-20-020 | Tapered Tip | 5 | 20 | 2.55/2.1 | 2.8 |
| GSP-24-20-030 | Tapered Tip | 10 (long nose) | 30 | 2.55/2.1 | 2.8 |
| GSP-21-20-030 | Tapered Tip | 5 | 30 | 2.55/2.1 | 2.8 |
| GSP-24-20-020 | Tapered Tip | 10 (long nose) | 40 | 2.55/2.1 | 2.8 |
RotaCut® – Billroth II-Type with Multifilament Cutting Wire
Length 200 cm; compatible with guide wire .035” (0.89 mm); colored ring markers
| Catalogue-No. | Description | Tip Length (mm) | Cutting Wire Length (mm) | Outer Sheath Diameter (mm) | Min. Accessory Channel (mm) |
| GSP-34-20-020 | Billroth II | – | Variable | 2.55/2.1 | 2.8 |
Premier Cut – with Braided and Semi-Insulated Cutting Wire
Length 200 cm; compatible with guide wire .035” (0.89 mm); colored ring markers
| Catalogue-No. | Description | Tip Length (mm) | Cutting Wire Length (mm) | Outer Sheath Diameter (mm) | Min. Accessory Channel (mm) |
| GSP-25-20-020 | Tapered Tip | 5 | 20 | 2.55/2.1 | 2.8 |
| GSP-25-20-030 | Tapered Tip | 5 | 30 | 2.55/2.1 | 2.8 |
RotaCut® – with Braided Cutting Wire
Length 200 cm; compatible with guide wire .035” (0.89 mm); colored ring markers
| Catalogue-No. | Description | Tip Length (mm) | Cutting Wire Length (mm) | Outer Sheath Diameter (mm) | Min. Accessory Channel (mm) |
| GSP-31-20-020 | Tapered Tip | 5 | 20 | 2.55/2.1 | 2.8 |
| GSP-31-20-025 | Tapered Tip | 5 | 25 | 2.55/2.1 | 2.8 |
| GSP-31-20-030 | Tapered Tip | 5 | 30 | 2.55/2.1 | 2.8 |
RotaCut®-M – with Monofilament Cutting Wire
Length 200 cm; compatible with guide wire .035” (0.89 mm); colored ring markers
| Catalogue-No. | Description | Tip Length (mm) | Cutting Wire Length (mm) | Outer Sheath Diameter (mm) | Min. Accessory Channel (mm) |
| GSP-32-20-020 | Tapered Tip | 5 | 20 | 2.55/2.1 | 2.8 |
| GSP-32-20-025 | Tapered Tip | 5 | 25 | 2.55/2.1 | 2.8 |
| GSP-32-20-030 | Tapered Tip | 5 | 30 | 2.55/2.1 | 2.8 |
Premier Cut – with Braided and Semi-Insulated Cutting Wire
Length 200 cm; compatible with guide wire .035” (0.89 mm); colored ring markers
| Catalogue-No. | Description | Tip Length (mm) | Cutting Wire Length (mm) | Outer Sheath Diameter (mm) | Min. Accessory Channel (mm) |
| GSP-27-20-030 | Tapered Tip | 5 | 30 | 2.55/2.1 | 2.8 |
S.O.S. Sphincterotome Set – with Pre-Loaded Guide Wire
„Speed-Option Set“: 2-lumen sphincterotome with integrated pre-loaded and hydrophilically Teflon-coated .035” Nitinol-guide wire, length 450 cm (GGW-03-35-450); colored ring markers
| Catalogue-No. | Description | Tip Length (mm) | Cutting Wire Length (mm) | Outer Sheath Diameter (mm) | Min. Accessory Channel (mm) |
| GSP-21-20-031 | Tapered Tip Braided Cutting Wire |
5 | 30 | 2.55/2.1 | 2.8 |
| GSP-25-20-031 | Tapered Tip Braided Cutting Wire Semi-Insulated |
5 | 30 | 2.55/2.1 | 2.8 |
S.O.S Sphincterotome Set – with Pre-Loaded Guide Wire
Speed Option Set“: 3-lumen sphincterotome with integrated pre-loaded and hydrophilically Teflon-coated .035” Nitinol-guide wire, length 450 cm (GGW-03-35-450); colored ring markers
| Catalogue-No. | Description | Tip Length (mm) | Cutting Wire Length (mm) | Outer Sheath Diameter (mm) | Min. Accessory Channel (mm) |
| GSP-32-20-031 | Tapered Tip Monofilament Cutting Wire |
5 | 30 | 2.55/2.1 | 2.8 |
