Mechanical Lithotripsy – Stonebuster®

Stonebuster^® – one system with many possible combinations. Choose the right lithotripsy basket for every situation and simply combine it with our metal spiral and the lithotriptor handle.

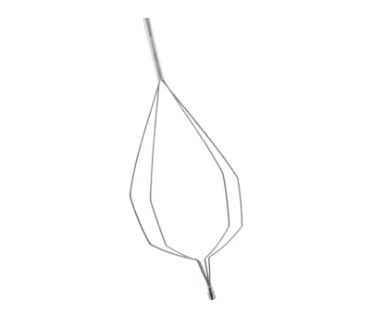

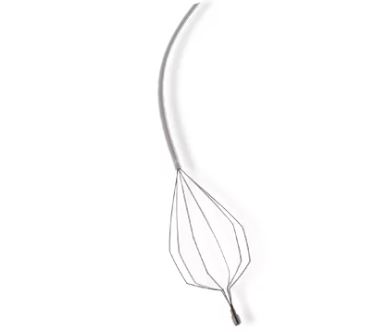

4-wire or 6-wire baskets
diamond and braided types
flushable metal spiral
stainless steel spirals for standard and emergency lithotripsy
pre-assembled set configurations

StoneBuster Lithotripsy System – Single Use Leaflet

Technical Details

Lithotripsy Basket - Braided Wire

Suitable for injectable lithotripsy spiral; tube length: 195 cm; total system length: 400 cm

Catalogue No.	Description	Sheath Outer Diameter (mm)	Suitable for Lithotripsy Spiral	Basket Width in Opened Condition (mm)	Min. Accessory Channel (mm)
GML-06-26-420	4-Wire Basket	2.6	GML-91-26-180	20	2.8
GML-06-26-620	6-Wire Basket	2.6	GML-91-26-180	20	2.8
GML-06-26-425	4-Wire Basket	2.6	GML-91-26-180	25	2.8
GML-06-26-625	6-Wire Basket	2.6	GML-91-26-180	25	2.8
GML-06-26-430	4-Wire Basket	2.6	GML-91-26-180	30	2.8
GML-06-26-630	6-Wire Basket	2.6	GML-91-26-180	30	2.8

Lithotripsy Basket - Braided Wire

Pre-assembled in “injectable” lithotripsy spiral GML-91-26-180; total system length: 280 cm

Catalogue No.	Description	Sheath Outer Diameter (mm)	Basket Width in Opened Condition (mm)	Min. Accessory Channel (mm)
GML-11-26-420	4-Wire Basket	2.6	20	2.8
GML-11-26-620	6-Wire Basket	2.6	20	2.8
GML-11-26-425	4-Wire Basket	2.6	25	2.8
GML-11-26-625	6-Wire Basket	2.6	25	2.8
GML-11-26-430	4-Wire Basket	2.6	30	2.8
GML-11-26-630	6-Wire Basket	2.6	30	2.8

Lithotripsy Basket - Braided Wire

Suitable for standard lithotripsy spiral; tube length: 180 cm; total length: 400 cm

Catalogue No.	Description	Tube Ø (mm)	Suitable for Lithotripsy Spiral	Basket Width in Opened Condition (mm)	Min. Accessory Channel (mm)
GML-01-26-420	4-Wire Basket	2.6	GML-90-26-180	20	2.8
GML-01-26-620	6-Wire Basket	2.6	GML-90-26-180	20	2.8
GML-01-26-425	4-Wire Basket	2.6	GML-90-26-180	25	2.8
GML-01-26-625	6-Wire Basket	2.6	GML-90-26-180	25	2.8
GML-01-26-430	4-Wire Basket	2.6	GML-90-26-180	30	2.8
GML-01-26-630	6-Wire Basket	2.6	GML-90-26-180	30	2.8

Fitting Lithotripsy Components – Standard Lithotripsy System

Catalogue No.	Description
GML-90-34-080	Emergency Lithotripsy Spiral Reusable, outer diameter 3.4 mm, working length 80 cm
GML-90-26-180	Injectable Lithotripsy Spiral Reusable, outer diameter 2.6 mm, working length 180 cm
GML-99-01-000	StoneBuster Lithotripsy Handle Reusable, user-friendly twist & pull technology, 1-push safety system

Fitting Lithotripsy Components - Injectable Mechanical Lithotripsy

Catalogue No.	Description
GML-90-34-080	Emergency Lithotripsy Spiral Reusable, outer diameter 3.4 mm, working length 80 cm
GML-91-26-180	Injectable Lithotripsy Spiral Reusable, outer diameter 2.6 mm, working length 180 cm
GML-99-01-000	StoneBuster Lithotripsy Handle Reusable, user-friendly twist & pull technology, 1-push safety system
