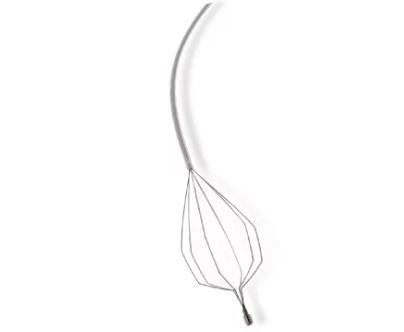

Stone Extraction Baskets
Our stone extraction baskets for easy and safe recovery of foreign bodies from the bile duct. The 45 degrees injection opening supports a user-friendly and easy injection of contrast medium.
- ergonomic instrument handle
- monofilament or multifilament wire
- stainless steel or Nitinol baskets, each with an atraumatic tip
- 4-wire, 6-wire or 8-wire basket
- guide wire compatible variants (.035 ”)
- 45 degrees injection opening for user-friendly and easy injection of contrast media and integrated sealing
Technical Details

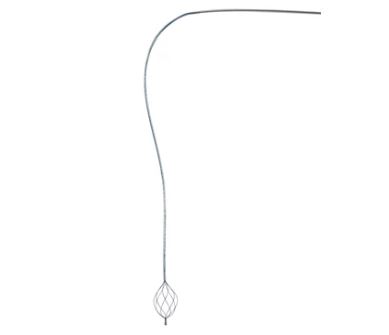

Stone Extraction Basket – 8 Monofilament Nitinol Wires
Not suitable for mechanical lithotripsy
| Catalogue No. | Basket Shape | Tube Diameter (mm) | Distal Tip Diameter | Basket Width in Opened Condition (mm) | Working Length (cm) | Min. Accessory Channel (mm) |
| GEB-13-19-820 | 8-Wire Dormia | 1.9 | 1.8 | 20 | 180 | 2.8 |
| GEB-13-19-830 | 8-Wire Dormia | 1.9 | 1.8 | 30 | 180 | 2.8 |
Stone Extraction Basket – 8 Monofilament Nitinol Wires
Compatible with guide wire .035”, not suitable for mechanical lithotripsy
| Catalogue No. | Basket Shape | Tube Diameter (mm) | Distal Tip Diameter | Basket Width in Opened Condition (mm) | Working Length (cm) | Min. Accessory Channel (mm) |
| GEB-14-27-820 | 8-Wire Dormia | 2.7 | 0.95 | 20 | 180 | 2.8 |
| GEB-14-27-830 | 8-Wire Dormia | 2.7 | 0.95 | 30 | 180 | 2.8 |
Stone Extraction Basket – 4 Braided Wires
Suitable for emergency lithotripsy system
| Catalogue No. | Basket Shape | Tube Diameter (mm) | Distal Tip Diameter | Basket Width in Opened Condition (mm) | Working Length (cm) | Min. Accessory Channel (mm) |
| GEB-11-25-430 | 4-Wire Basket | 2.35 | 2.6 | 30 | 180 | 2.8 |
| GEB-11-19-430 | 4-Wire Basket | 1.9 | 1.8 | 30 | 180 | 2.8 |
| GEB-11-25-425 | 4-Wire Basket | 2.35 | 2.6 | 25 | 180 | 2.8 |
| GEB-11-19-425 | 4-Wire Basket | 1.9 | 1.8 | 25 | 180 | 2.8 |
| GEB-11-25-420 | 4-Wire Basket | 2.35 | 2.6 | 20 | 180 | 2.8 |
| GEB-11-19-420 | 4-Wire Basket | 1.9 | 1.8 | 20 | 180 | 2.8 |
Stone Extraction Basket – 6 Braided Wires
Suitable for emergency lithotripsy system
| Catalogue No. | Basket Shape | Tube Diameter (mm) | Distal Tip Diameter | Basket Width in Opened Condition (mm) | Working Length (cm) | Min. Accessory Channel (mm) |
| GEB-11-19-620 | 6-Wire Basket | 1.9 | 1.8 | 20 | 180 | 2.8 |
| GEB-11-25-620 | 6-Wire Basket | 2.35 | 2.5 | 20 | 180 | 2.8 |
| GEB-11-19-625 | 6-Wire Basket | 1.9 | 1.8 | 25 | 180 | 2.8 |
| GEB-11-25-625 | 6-Wire Basket | 2.35 | 2.5 | 25 | 180 | 2.8 |
| GEB-11-19-630 | 6-Wire Basket | 1.9 | 1.8 | 30 | 180 | 2.8 |
| GEB-11-25-630 | 6-Wire Basket | 2.35 | 2.5 | 30 | 180 | 2.8 |
