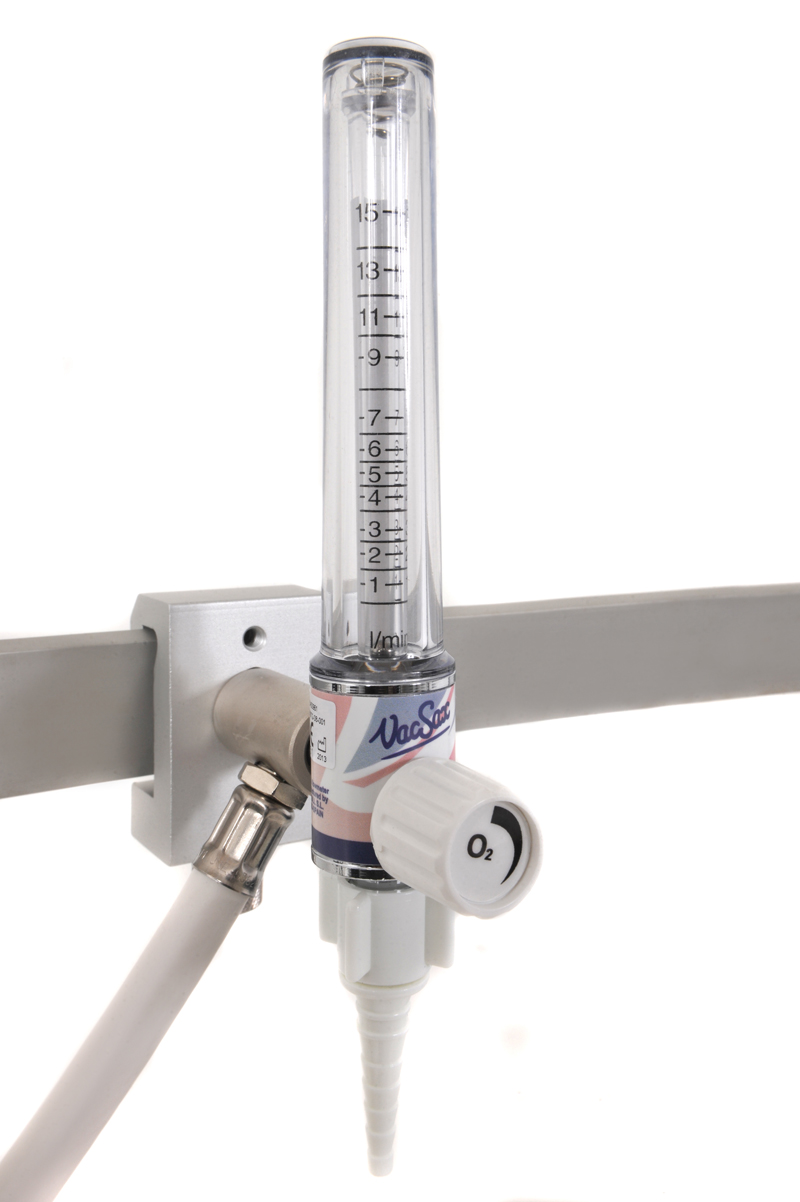

VacSax Oxyll Oxygen Flowmeter
The Oxyll flowmeter is light and user friendly, highly effective and accurate. Flow stays unaffected by any output restriction caused by humidifiers, nebulizers or any other accessories. It is available equipped with BS probes and is virtually maintenance free.
Product Specifications:
- Materials: Chromium-plated brass body, inner and external tube in polycarbonate, stainless steel ball. Other pieces in brass, polyamide and NBR. Latex free.
- Litres per minute: from o to 15 L/min.
- Range: o -0,5 -1 -1,5 -2 -2,5 -3 -3,5 -4 -4,5 -5 -5,5 -6 -6,5 -7 -8 -9 -10 -11 -12 -13 -14 -15
- Input pressure: 4.2 Kg/cm2 – 60 psi – 414 KPa
- Input thread: Whitworth GAS 1/8″
- Output thread: UNF 9/16″ 18H
- Dimensions: 48 x 26 x 145 mm. Weight: 160 gr.
Litreature:
Technical Details
Part No. | Description |
5540961 | o2 Flowmeter 0-15L/min withy direct BS probe |
5450961 | Remote rail mounted o2 Floweter 0-15L/min BS probe |
5540963 | o2 twin Flowmeter 0-15L/min with direct BS probe |
5450963 | Remote rail mounted twin o2 Flowmeter 0-15L/min BS probe |
