Portex® EchoGlo® Peripheral Nerve Block Needle

ENGINEERED FOR ULTRASOUND

The Portex® EchoGlo® Peripheral Nerve Block Needle has been engineered for echogenic brightness over a wide angular range – whether steep and deep, or shallow conditions – for enhanced visualization and to enable accurate delivery of medication.

Illuminating design

The echogenic helical design is a proprietary design with a combination of clockwise and counter clockwise grooves. The grooves are engineered to reflect acoustic energy back to the transducer allowing for echogenic visibility.

Pitch Perfect

The EchoGlo® PNB needle groove incorporates a smaller pitch, resulting in an increased “feature density,” thereby creating more echogenicity than a regular needle.

Litreature:

Technical Details
Product numberDescriptionPer box

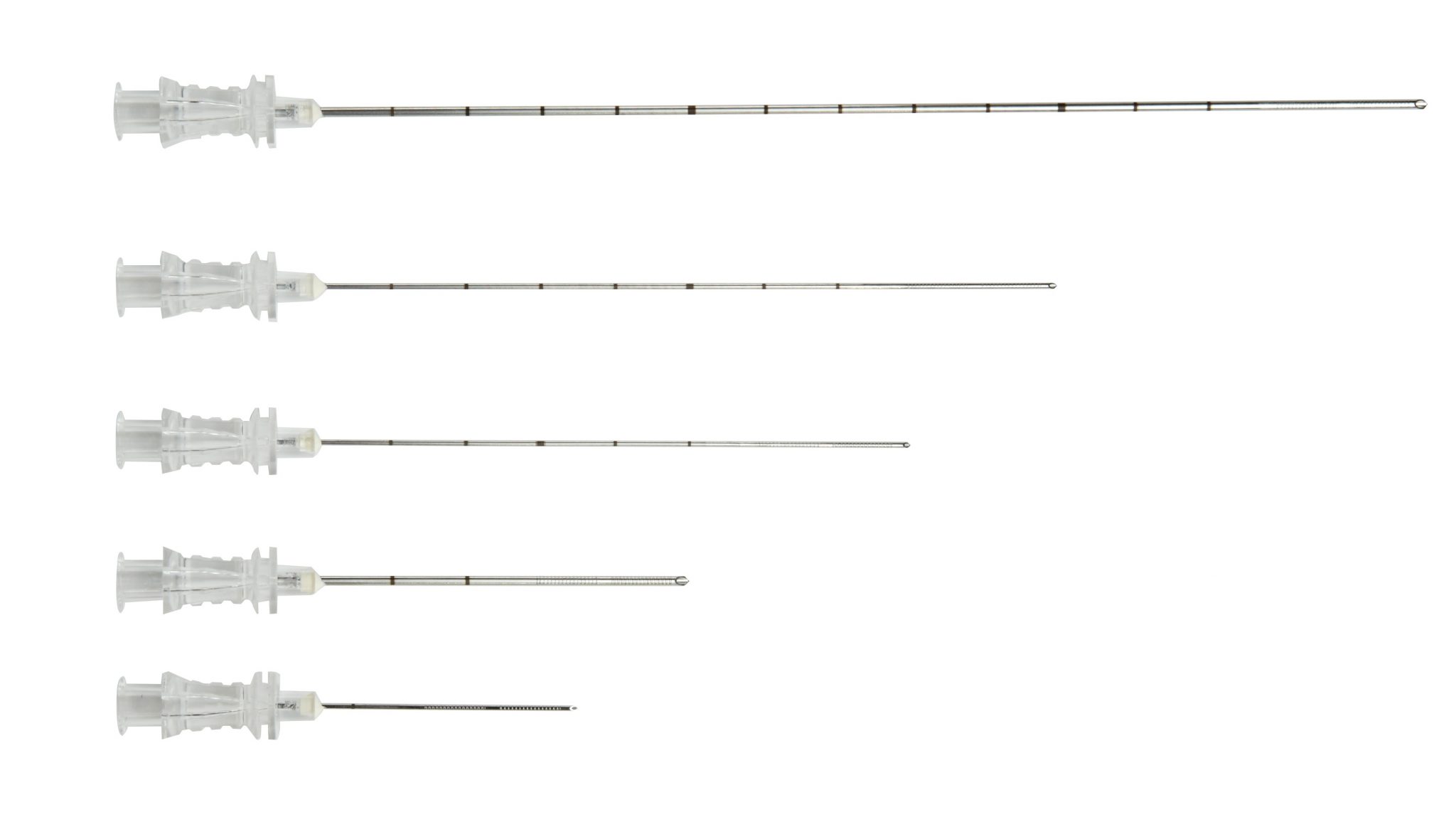

24-4100-24Single-shot nerve block needle, 22G x 35 mm (1 3/8 in.), 30° bevel, Luer25
24-4101-24Single-shot nerve block needle, 22G x 50 mm (2 in.), 30° bevel, Luer25
24-4102-24Single-shot nerve block needle, 22G x 80 mm (3 1/8 in.), 30° bevel, Luer25
24-4103-24Single-shot nerve block needle, 22G x 100 mm (4 in.), 30° bevel, Luer25
24-4104-24Single-shot nerve block needle, 21G x 100 mm (4 in.), 30° bevel, Luer25
24-4105-24Single-shot nerve block needle, 20G x 150 mm (6 in.), 30° bevel, Luer25
24-4122-01*Single-shot nerve block prep tray with drugs10
