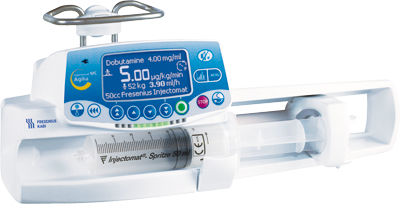

Injectomat MC Agilia

Syringe Drivers

Features

• Flow rate range: 0.1-1200 ml/h (depending on the syringe capacity).
• Flow rate accuracy: ± 1% on mechanism ; ± 2 % on syringes.
• Syringe capacities: 5,10, 20, 30/35, 50/60 CC.
• Infusion modes: ml/h
• Dose units: ng, μg, mg, cal, kcal, U, kU, mmol, mol,
• Kmol / kg.
• Time units: 24h / h / min.
• Dilution setting: X units / ml or X units / Y ml.
• Volume or dose / time: 0.1-99.9 units ; 00h01- 96h00.
• Volume limit: 0.1-999.9 ml.
• Bolus: Manual bolus: Rate: 50 -1200 ml/h; 50 ml/h increment. Programmed bolus (dose or volume/time): 0.1-99.9 units / 0.1-1200 ml/time auto-calculation.
• Programming modes: No drug names: infusion without any display of the drug names. Drug labelling: infusion with the drug names. Vigilant® Drug’Lib: the secured IV Administration mode with a drug library.
• Drug labelling: Display of the drug name based on a list of 50 pre-set drug names.
• Drug libraries: Drug parameters, infusion, bolus and loading dose parameters, authorised infusion modes, infusion mode per default. Inititial drug library of 50 drugs adjustable with Vigilant®, the IV Medication Safety Solution. Up to 120 drugs (depending on comment size) storable in 4 different drug libraries.
• Pressure modes: 2 modes available: variable or 3 pre-set levels – From 100 to 900 mmHg, 50 mmHg increment.
• DPS The Dynamic Pressure System – DPS – warns of pressure variations. A risk of obstruction or a possible leak in the infusion line can thus be anticipated.
• Anti-bolus system: Reduces significantly bolus after occlusion release (0.2 ml max).

Agilia Injectomat MC – Data sheet
